Customer HelpToyota Prius P3190 – Engine Fails to Start
Alec Sharma
Founder of iHybrid Battery
What It Means, What Causes It, and How to Fix It Without Wasting Money

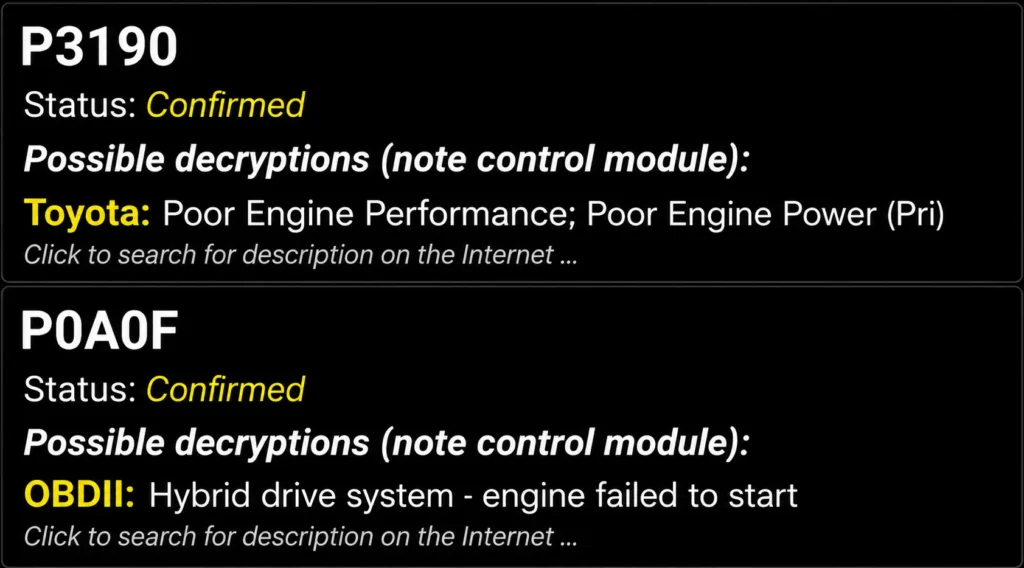

If you drive a Toyota Prius and see the dreaded P3190 error code, you’re not alone — and you’re not doomed either. This error means “Engine Failed to Start” or “Poor Engine Power”, and while it’s frustrating, it doesn’t always mean a major failure like a dead hybrid battery.
In this post, we’ll explain what this code really means, why it happens, and how to diagnose and fix it step-by-step without throwing money at the wrong parts.
⚙️ How Hybrid Starting Works (and Why It Matters)
Unlike regular gas cars, a hybrid like the Prius doesn’t have a conventional starter or alternator. Instead, it uses the electric motor inside the transmission (MG1) to crank the engine. This motor gets its power from the hybrid battery.
✅ When things work correctly: The hybrid battery cranks the engine, the engine starts, and immediately starts charging the hybrid battery again.
❌ When there’s a problem: The engine tries to start but fails, repeatedly pulling power from the hybrid battery without replenishing it. After 10, 20, or 30 attempts, the hybrid battery can become fully discharged — and then you’ll get battery fault codes, too.
⚠️ Don’t be misled: If you suddenly see battery codes after trying to start multiple times, it doesn’t mean your battery is bad — it could be completely drained because of the failed starts, not the cause of them.

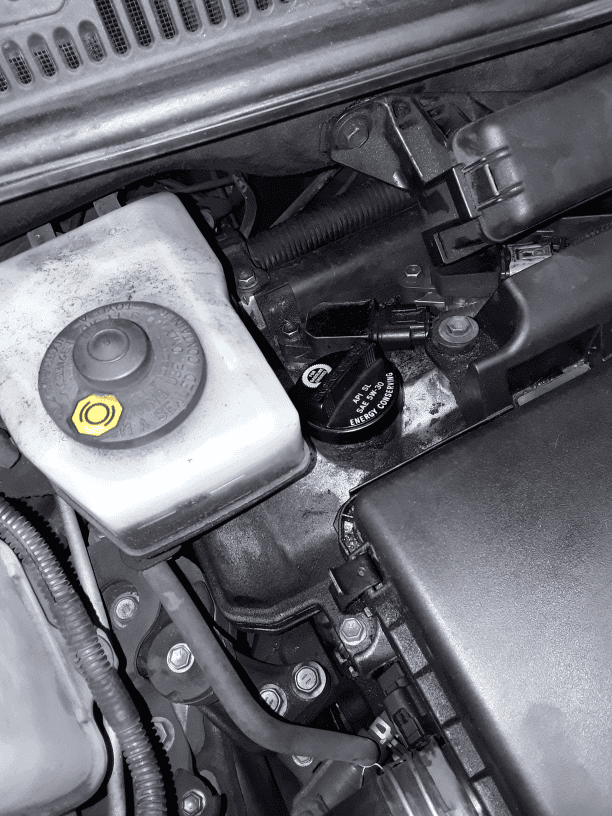

🔍 Common Causes of P3190
Here are the most common reasons for this frustrating error code:
1. 🌬️ Air Induction System Failure – Leaks or blockages in the intake system can cause poor airflow.
2. ⛽ Out of Fuel – Believe it or not, a common cause.
3. 🧱 Engine Mechanical Issues – Low compression or timing problems.
4. 🧲 Crankshaft Position Sensor – If this sensor fails, the engine can’t start.
5. 🌡️ Coolant Temperature Sensor – Incorrect readings confuse the ECU.
6. 🔌 Mass Air Flow (MAF) Sensor – Faulty or dirty MAF sensors affect air/fuel mix.
7. 🛢️ Throttle Body – Dirty or faulty throttle body restricts airflow.
8. 🔧 Vacuum Leaks – Can lead to unmetered air and lean running.
9. ⚡ Weak or Discharged Hybrid Battery – Can’t crank the engine if it’s too low.
10. 💻 Defective ECM – Rare, but possible.

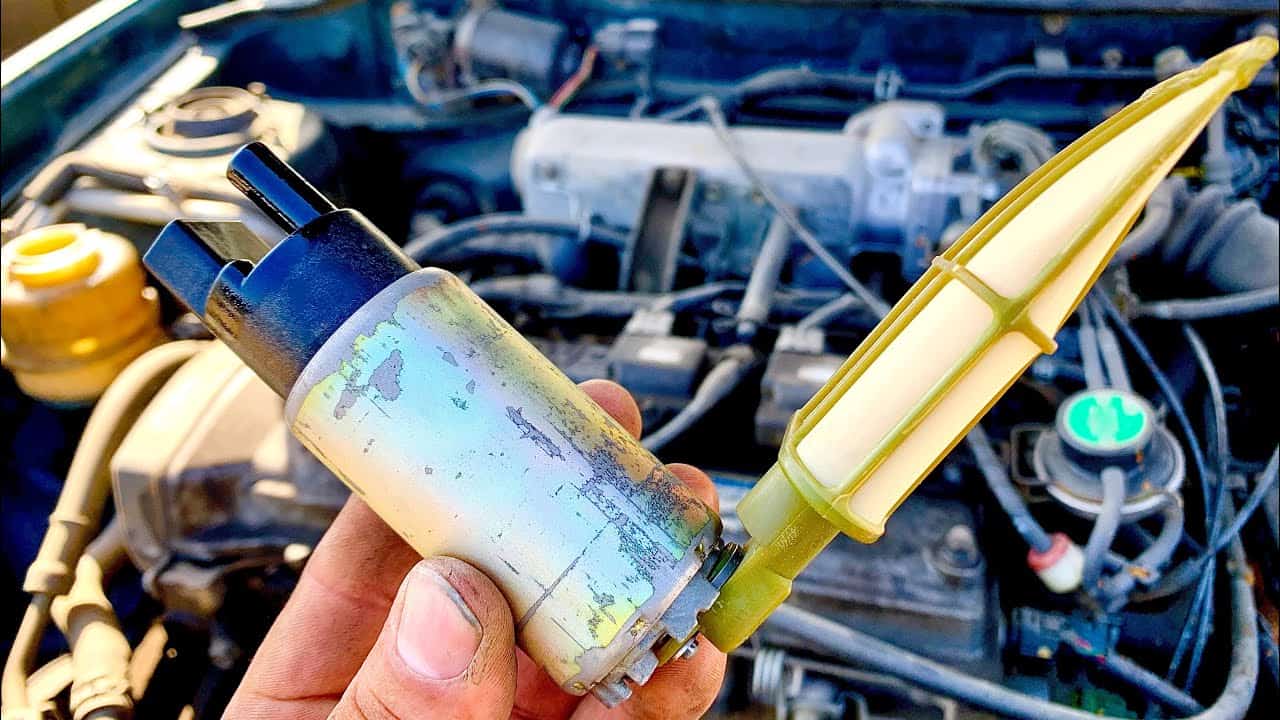

🧰 Real-World Tip: Fuel Pump Fixes a Lot
Many Prius owners have fixed this issue by just replacing the fuel pump. On 2004–2009 Prius models, the fuel pump is located inside the gas tank, so replacing it often requires dropping the tank using a hoist. Not a fun DIY job, but not too expensive if you go to the right mechanic — or get parts from the scrapyard.
✅ Step-by-Step: What to Replace First (In Order)
Here’s a smart repair order to follow before replacing the hybrid battery:
1. 🔄 Replace the Fuel Pump
2. ⚡ Check/Replace Fuel Pump Relay
3. 🌬️ Clean or Replace the Throttle Body
4. 🔌 Clean or Replace the MAF Sensor
5. 🌡️ Check or Replace the Coolant Temp Sensor
6. 🧠 Only then — consider the Hybrid Battery
⚠️ Warning: Don’t try to start your Prius too many times if it won’t start. You’ll kill the hybrid battery and confuse your diagnosis even more.
🧠 Final Advice: Work With a Good Mechanic
If you’re not 100% sure what you’re doing, find a mechanic who understands hybrid systems. Take it one issue at a time. Prius parts are common and cheap — don’t replace the most expensive thing first!
🛠️ We’re Here to Help
At iHybrid Battery, we don’t do general mechanical repairs — but we specialize in hybrid battery support. If you’re troubleshooting error codes like P3190, we can provide a tested loaner hybrid battery to help you isolate the problem without wasting money on unnecessary parts.
