Prius (2004–2009) Hybrid Cooling Fan Troubleshooting Guide

Picture of Alec Sharma

Alec Sharma

Founder of iHybrid Battery

The hybrid battery cooling fan in the 2004–2009 Toyota Prius (Gen 2 Prius) is critical for keeping the high-voltage battery at a safe operating temperature.

If the fan stops working, the battery can overheat and trigger warning lights. Here’s a step-by-step approach to diagnosing issues.

1. Understanding the Cooling Fan System

  • The fan is powered by 12 volts through a resistor bank mounted in the return duct.
  • The resistor bank has four pins, which allow the fan to operate at different speeds.
  • The Hybrid ECU controls when and how fast the fan runs, based on battery temperature sensors.

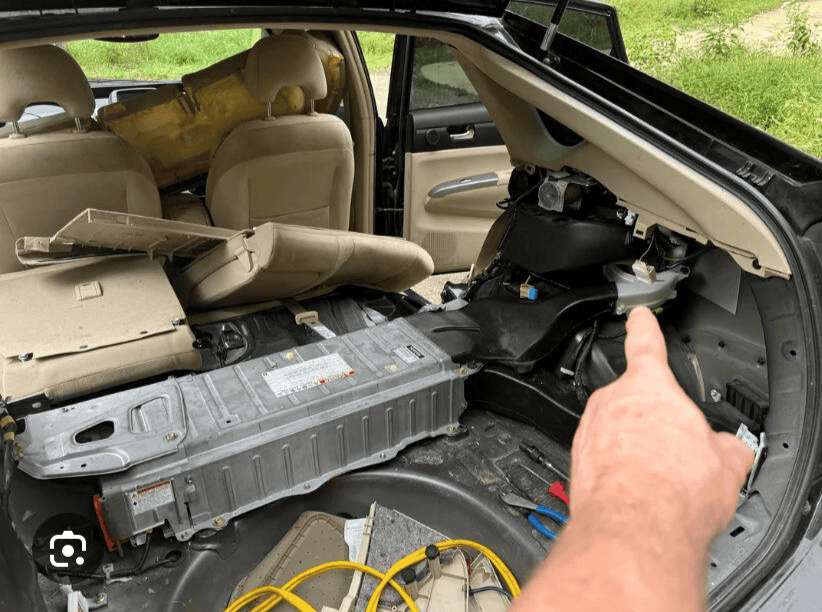

Cooling fan location in 2004-2009 Prius | iHybrid Battery | Lower Mainland
Cooling fan location in 2004-2009 Prius (Gen 2 Prius)

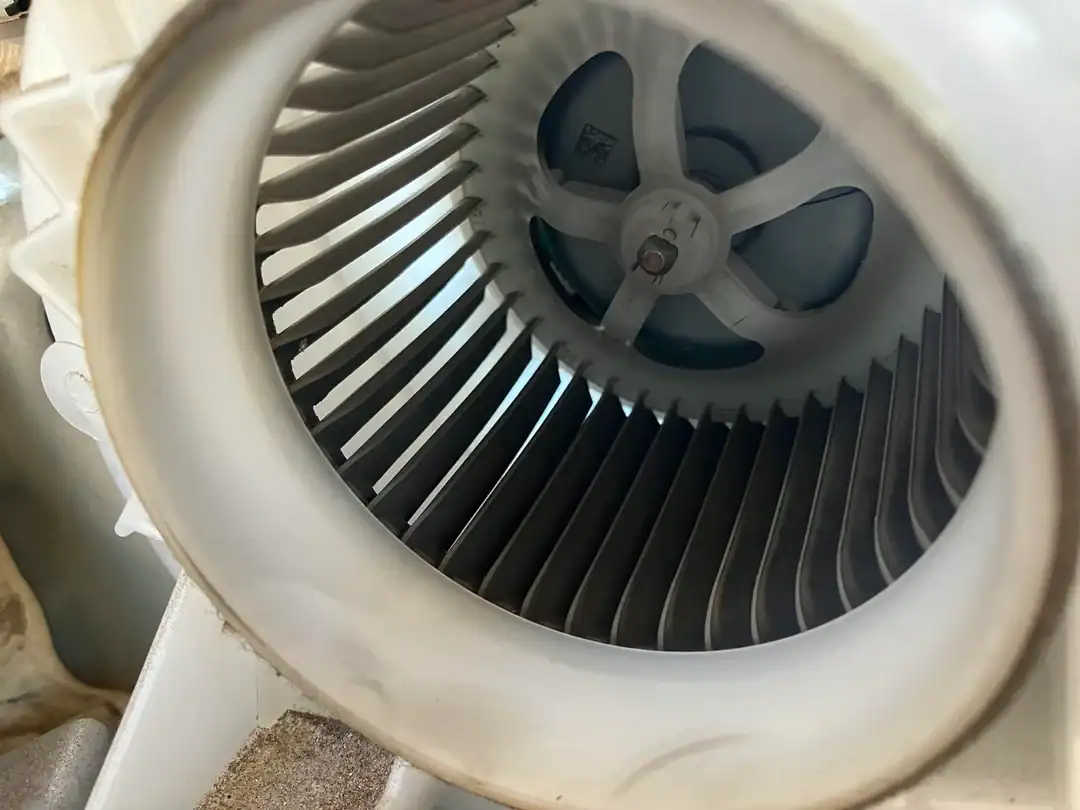

Symptoms of a Faulty Fan | iHybrid Battery | Lower Mainland

2. Symptoms of a Faulty Fan

  • Warning lights on the dash (red triangle, hybrid system warning).
  • Battery overheating or abnormal temperature readings.
  • Diagnostic trouble codes (DTCs) related to battery cooling.
  • Fan doesn’t activate even when the system is under load or hot.

3. Why Cooling Fan Codes Are Critical ⚠

Any cooling fan code is a very serious code that can potentially kill your battery. Here’s why:
  • The car’s computer monitors battery temperature using sensors mounted on the battery.
  • These sensors tend to cool off faster than the battery cells themselves.
  • If the fan is not running, the sensors give a false sense of safety — showing lower temps while the battery pack is still heat-soaked inside.
  • Driving in this condition accelerates irreversible damage to the battery.

👉 If you absolutely must drive the car and the computer still allows it, do so with caution. But do not clear the codes and continue driving — clearing the code can trick the system into thinking everything is fine, leading to severe battery damage that could have been prevented.

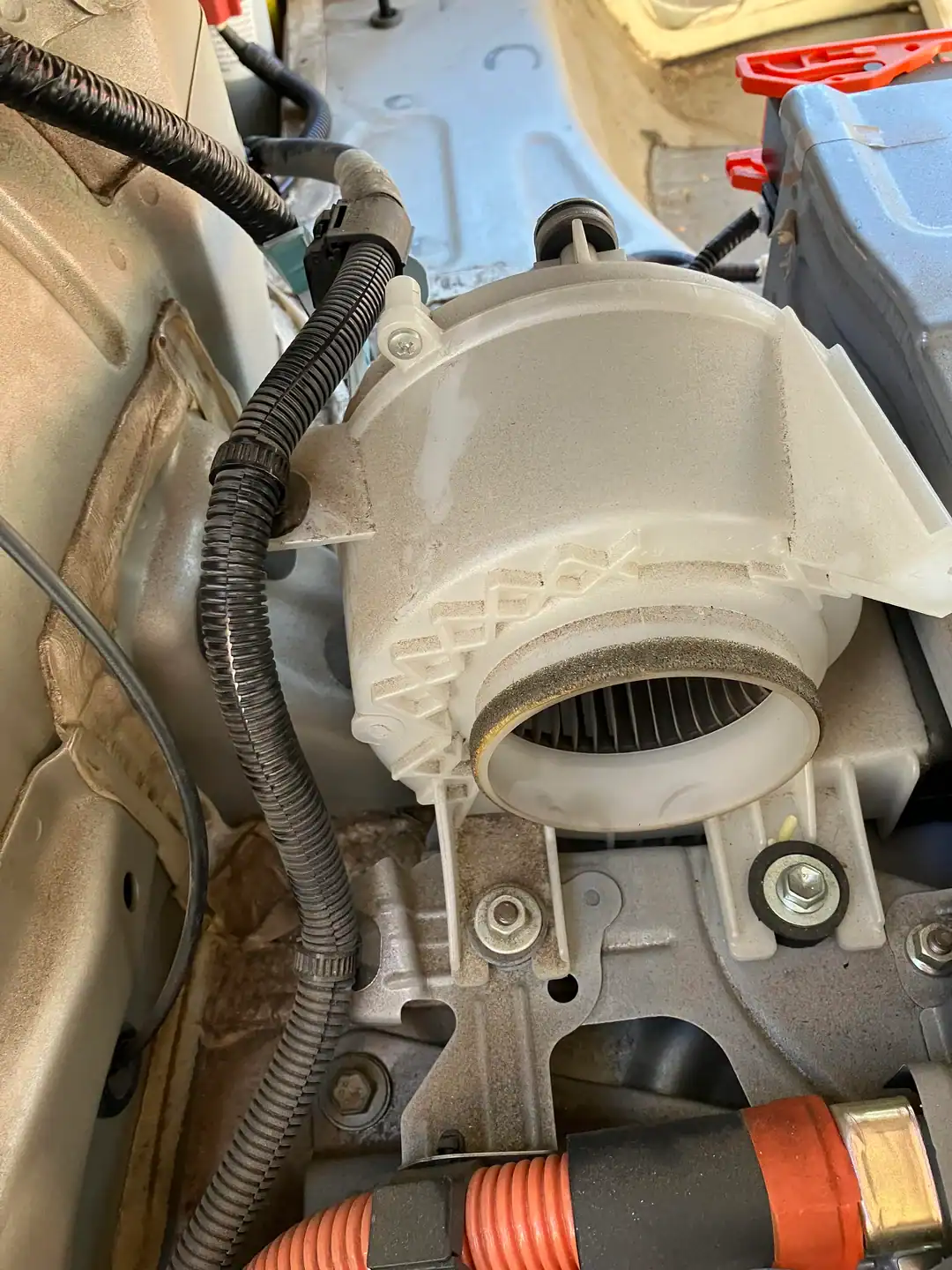

Why Cooling Fan Codes Are Critical | iHybrid Battery | Lower Mainland

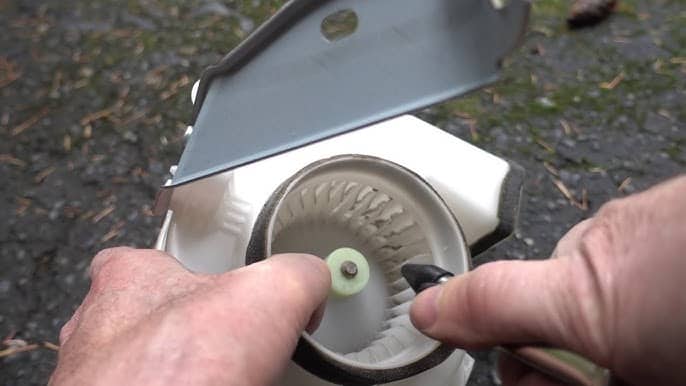

How to Test the Fan | iHybrid Battery | Lower Mainland

4. How to Test the Fan

  • 1. Check if the fan runs when commanded
  • Use a scan tool (Techstream or compatible) that can force the cooling fan ON.
  • If the fan does not run under command, move to step 2.
  • 2. Direct power test
  • Remove the fan, connect 12V directly to the fan terminals.
  • If it spins, the fan itself is good. If not, the fan motor is faulty and needs replacement.

5. Possible Causes If the Fan Works Out of the Car

  • Resistor Bank Failure
  • The resistor bank can fail, preventing power from reaching the fan.
  • Test with a multimeter for continuity across the pins. Replace if open.
  • Connector & Wiring Issues
  • The fan wiring harness and connectors often corrode.
  • Open the connectors, inspect for broken pins, rust, or melting.
  • ECU / Signal Issues
  • If the fan and resistor are good but still won’t run when commanded, the problem may be with the hybrid ECU signal output.
  • This requires further testing with a wiring diagram and scope.
Possible Causes If the Fan Works Out of the Car | iHybrid Battery | Lower Mainland

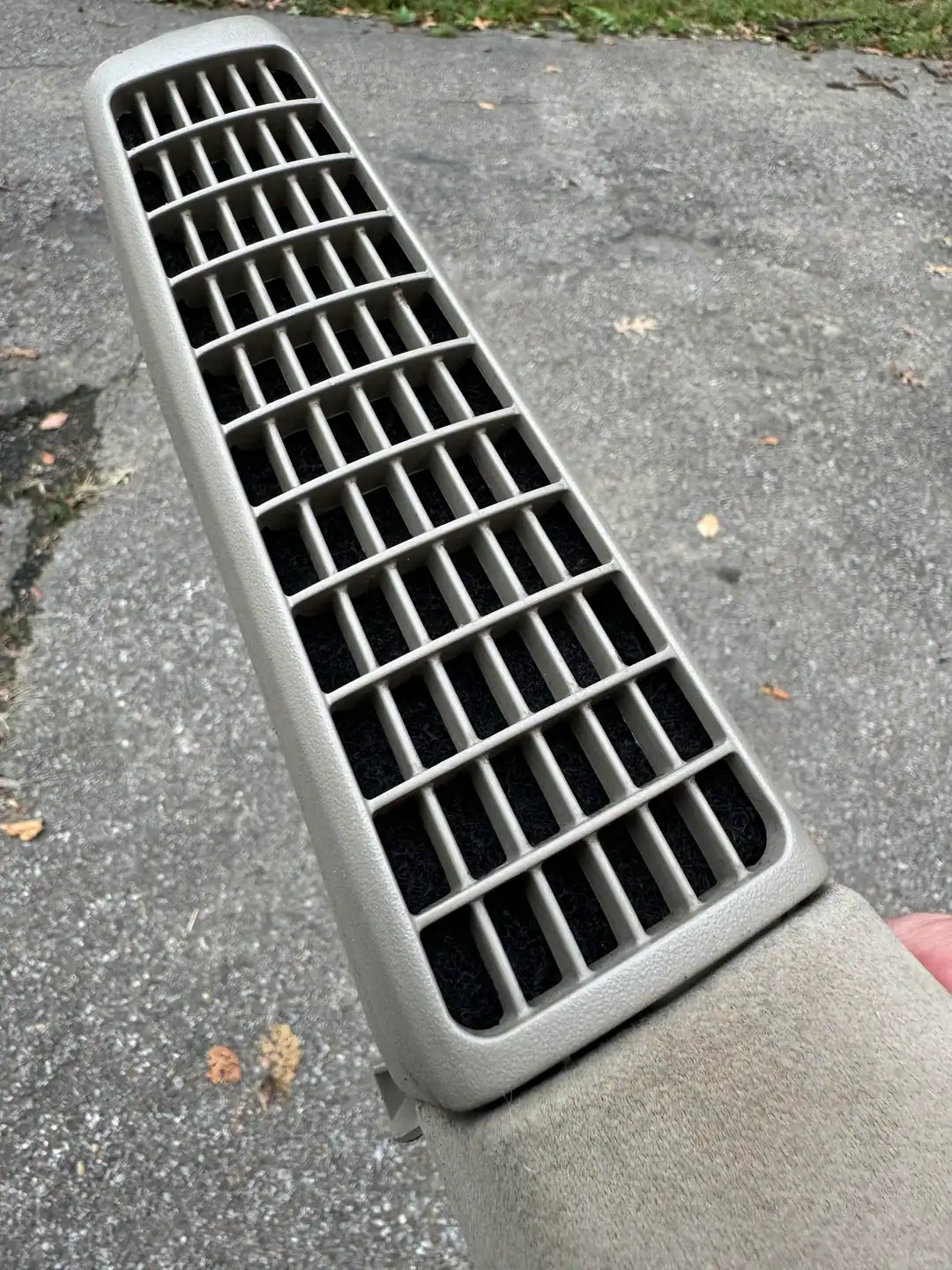

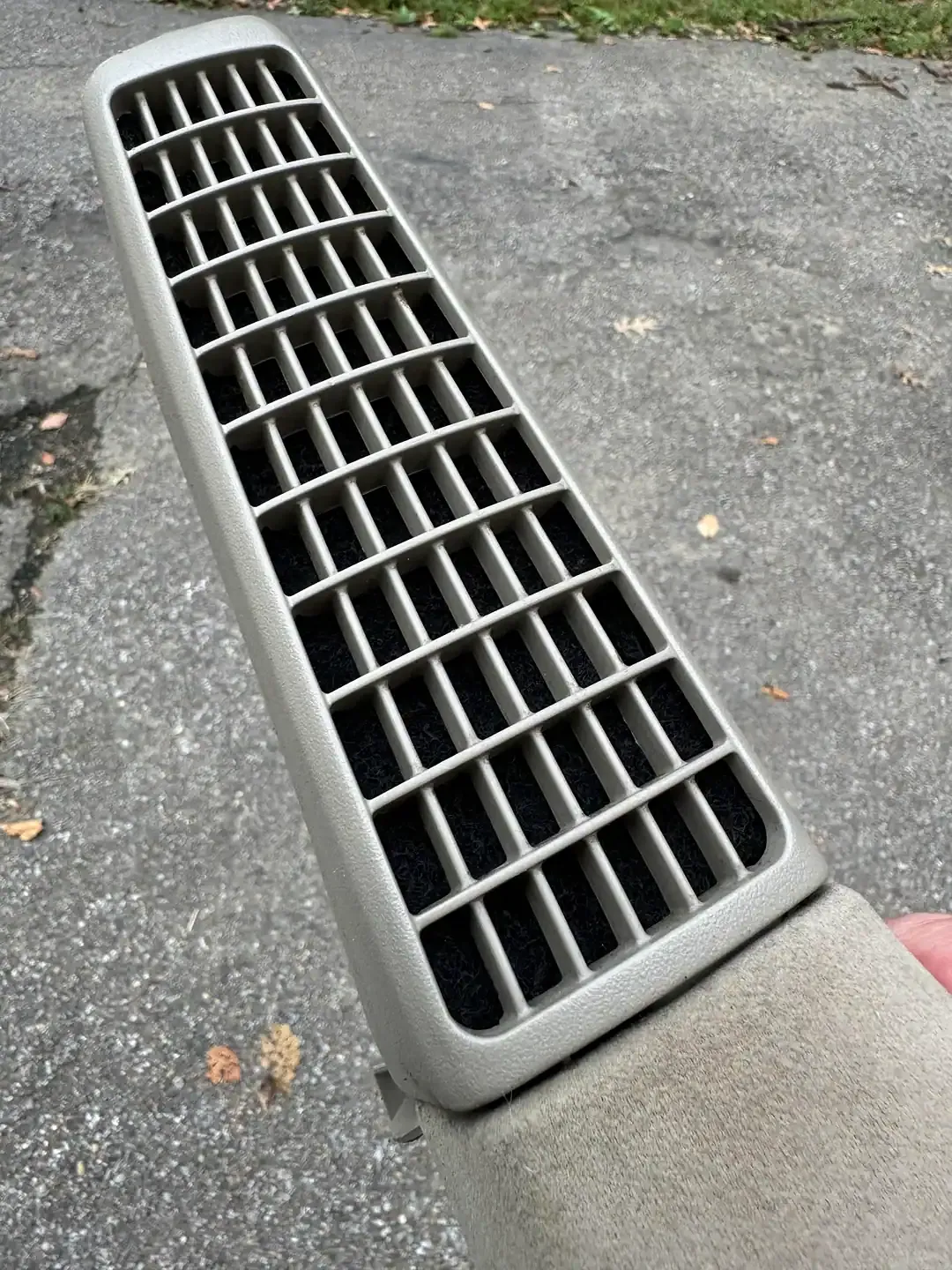

Maintenance Tips for Better Cooling | iHybrid Battery | Lower Mainland

6. Maintenance Tips for Better Cooling

Another major cause of reduced cooling is dust or debris buildup in the fan filter or inside the battery compartment:
Factory Filters:
  • If your Prius has a manufacturer-installed cooling fan filter, make sure it’s serviced or replaced at least once every three months. A clogged filter restricts airflow and causes the battery to run hotter.
Aftermarket Filters:
  • If no filter was provided by Toyota, avoid installing one yourself. Adding a filter where none was intended will reduce airflow and actually make the battery overheat faster.
Keep the Cabin Clean:
  • The cooling fan draws most of its air from the cabin interior. A dirty cabin means dirty intake air, which quickly clogs the fan and ducts. Keeping your car clean — especially carpets and upholstery — is one of the simplest ways to protect your hybrid battery.

7. Pro Tips

  • Resetting codes will clear the fan fault, but it will only return when the fan is commanded again by the ECU.
  • Keep filters clean: dust buildup restricts airflow, causing overheating.
  • Listen for fan noise: normally, the fan should hum quietly at low speed when the battery gets warm.

In summary:

If your Prius cooling fan isn’t working, take it seriously. Check in this order:

1. Scan tool command

2. Direct 12V test

3. Resistor bank continuity

4. Connector corrosion

5. ECU output

And remember: never ignore or clear a cooling fan code without fixing the root cause — it could mean the difference between saving your hybrid battery or losing it entirely. Regular cabin cleaning and fan filter service are simple, cost-effective ways to extend battery life.
