Simply connect to the car, read DTCs, and perform a P3102 clear. Once done, the warning light disappears, and you’re ready to drive with restored range.
Battery upgrades are more complex but more rewarding in terms of range improvement. The procedure depends on your vehicle’s generation:
Over the years, Nissan has introduced multiple battery versions for the Leaf, each offering different capacities, ranges, and compatibility. Whether you’re maintaining your original pack or planning an upgrade, it’s important to understand what each version offers.
In recent years, aftermarket Chinese battery packs have entered the scene. These typically use LiFePO₄ or NCM cells and can range anywhere from 24kWh to 60kWh, depending on the vendor.

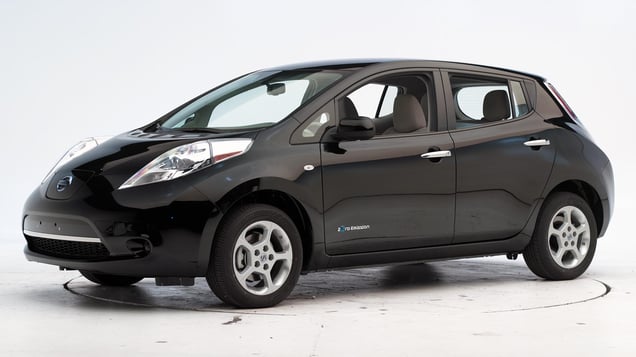

The original Leaf generation, easily recognized by its white interior and electric handbrake. These vehicles came with a 24 kWh battery pack.

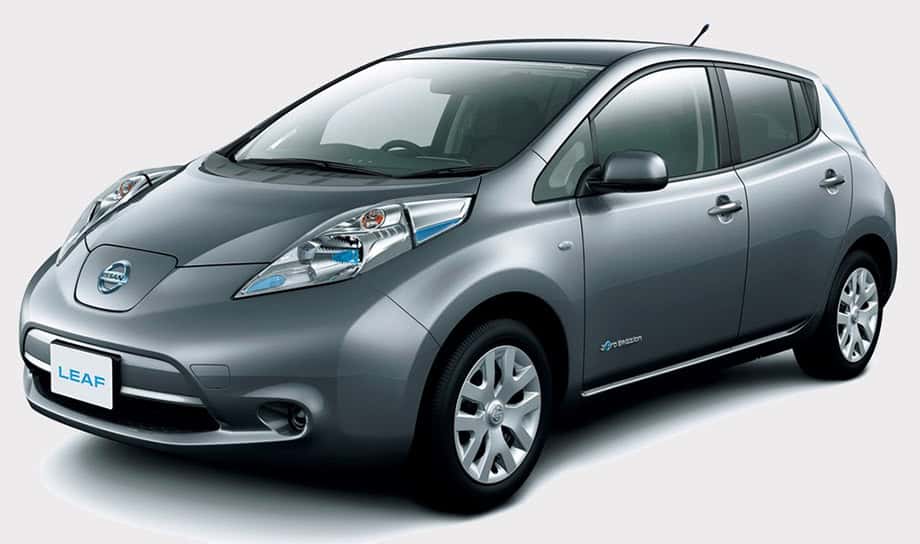

A refreshed version of the original Leaf, with a dark interior and foot-operated handbrake. These models offered 24 kWh or 30 kWh packs and featured updated electronics.

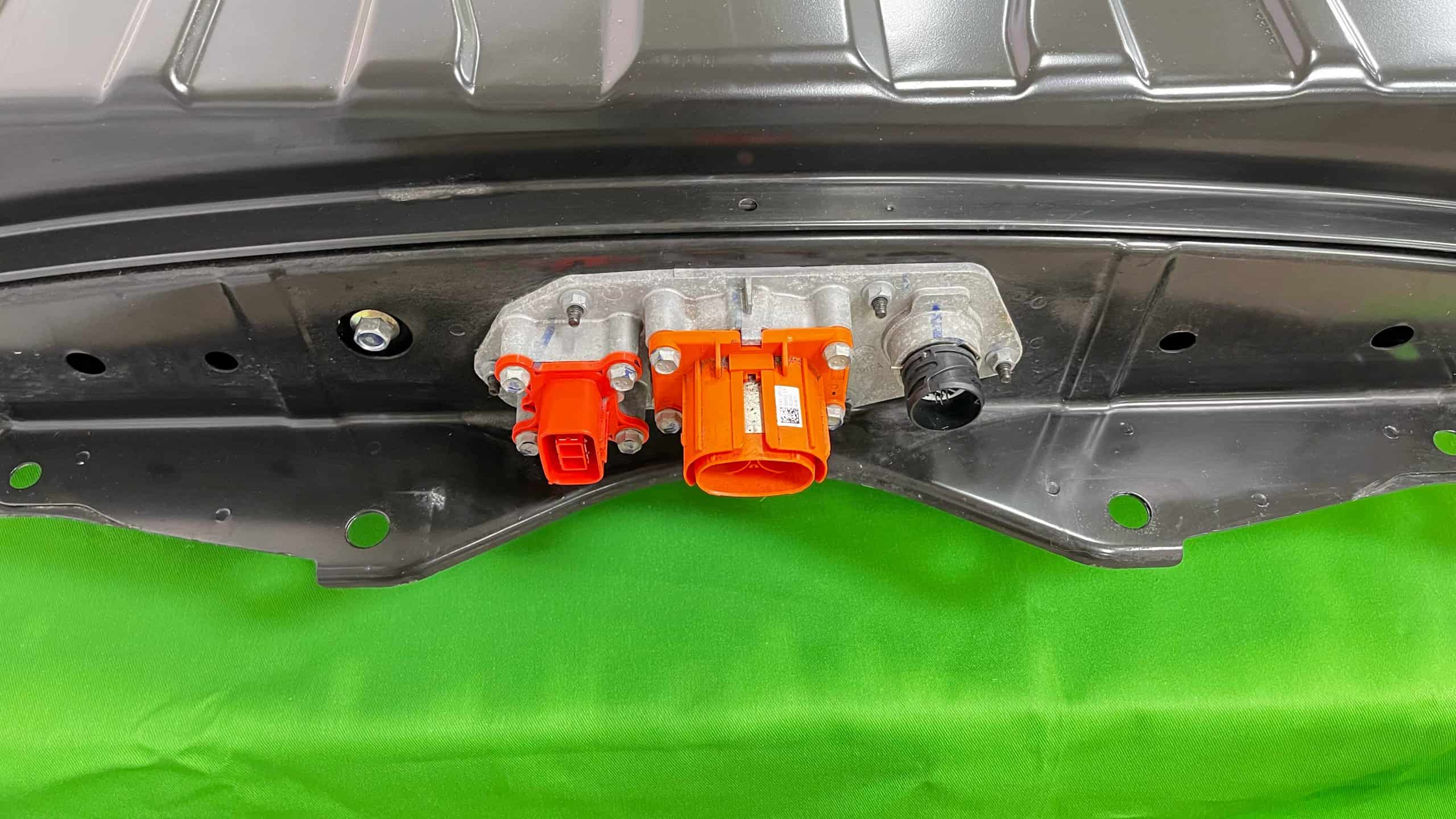

The second-generation Leaf introduced a new body design and higher-capacity 40 kWh and 62 kWh battery packs, offering significant range improvements.

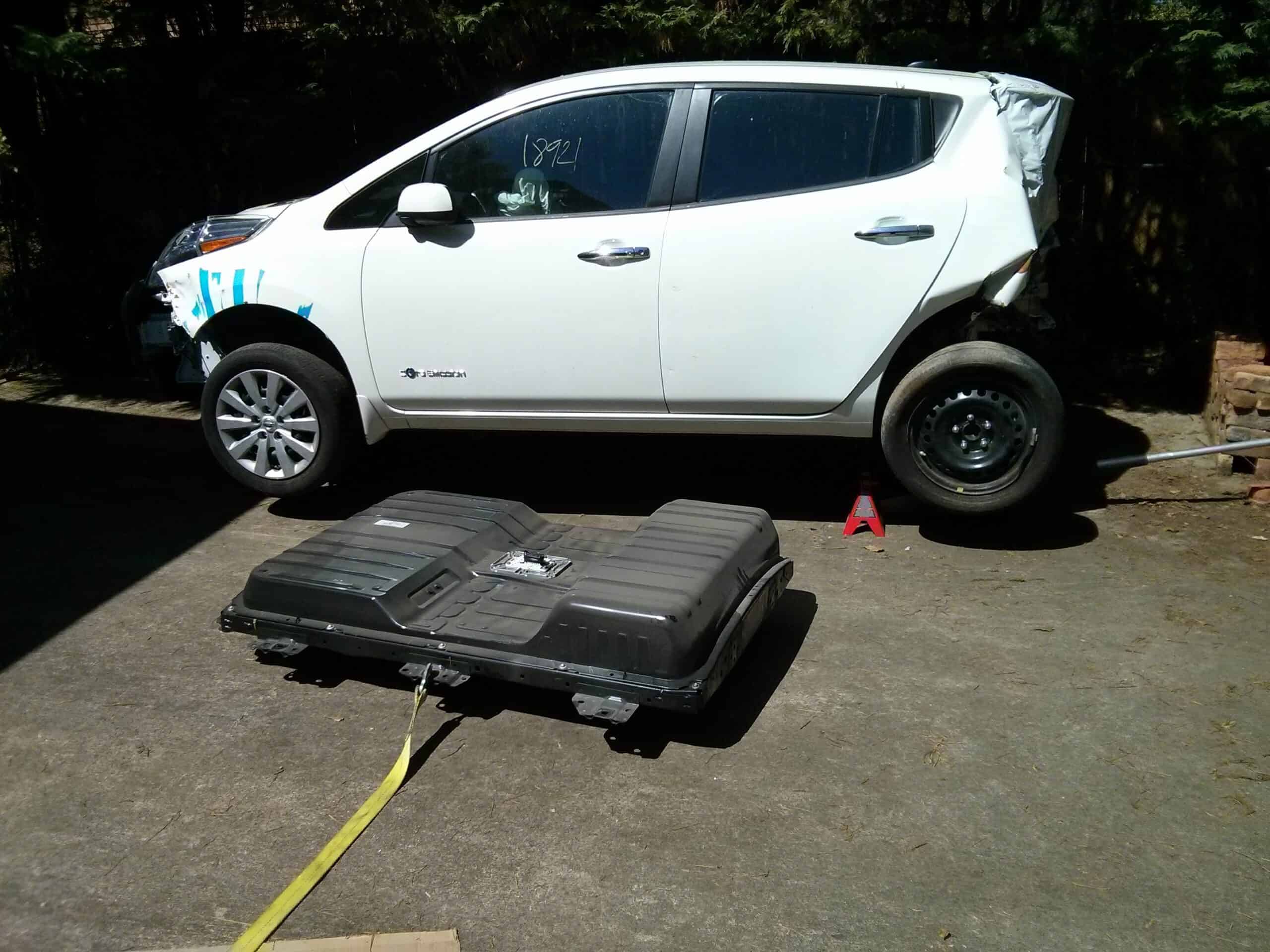

The good news is that battery packs from different Leaf generations can be made to work in one another with some electrical modifications. Here’s a general compatibility breakdown:
Battery Pack Donor | ZE0 (2011–2012) | AZE0 (2013–2017) | ZE1 (2018–present) |
24 kWh (ZE0) | Direct swap | Compatible with minor adjustments | May require modification |
30 kWh (AZE0) | Compatible with modification | Direct swap or minor adjustment | Compatible with modification |
40 kWh (ZE1) | Compatible with modification | Compatible with modification | Direct upgrade |
62 kWh (Leaf e+) | Compatible with modification | Compatible with modification | Upgrade within same generation |
These modifications are well-documented in the EV community, and many owners have successfully upgraded their Leafs by carefully selecting compatible parts and working with experienced technicians.
Upgrading the battery in your Nissan Leaf is a significant task that involves heavy lifting, electrical work, and careful planning. This section covers both the mechanical tools and electronic parts you may need for a successful battery upgrade or swap.
While the 24 kWh, 30 kWh, and 40 kWh packs are all the same physical size, the 62 kWh pack is taller and heavier. Here are the approximate weights:
⚠️ Note: If installing a 62 kWh pack, your vehicle may require re-certification due to the added weight.
Battery Pack | Weight (kg) | Weight (lbs) |
24 kWh | 277 kg | 601 lbs |
30 kWh | 294 kg | 648 lbs |
40 kWh | 303 kg | 668 lbs |
62 kWh | 410 kg | 903 lbs |

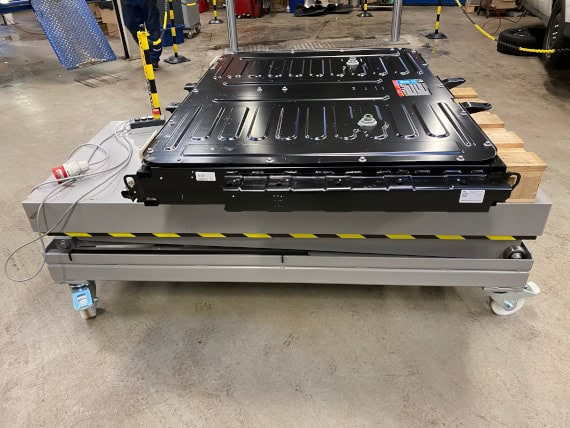

To physically remove and install the battery, the following equipment is recommended:
Depending on your vehicle’s year and the battery pack being installed, some electrical components may be required to complete the upgrade.
A CAN-bridge is essential for most upgrades. It translates communication between the newer battery’s control system and your Leaf’s existing vehicle computer.
Without a CAN-bridge, the car may not charge or recognize the new battery.
Only necessary for 2011–2012 ZE0 Leafs, this adapter bridges the change in battery connector types made after 2013.
Options for obtaining the adapter:
LeafSpy Pro is an essential diagnostic app for Nissan Leaf owners — especially when performing a battery swap or upgrade. It communicates directly with the car’s battery management system (BMS) via an OBD2 Bluetooth or WiFi adapter and allows you to monitor, reset, and troubleshoot key systems before and after installation.
When upgrading your battery, use the latest LeafSpy Pro version:
These versions support newer battery types and allow proper P3102 handling after a swap.

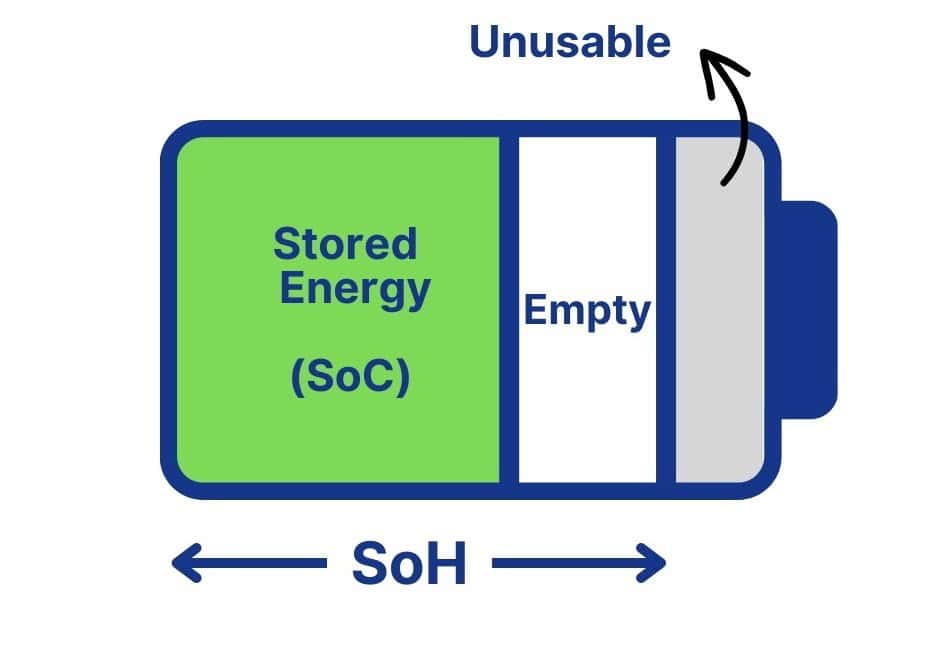

Is a percentage value that represents how much usable capacity your battery has compared to when it was new. For example, a 40 kWh pack with 90% SOH can store approximately 36 kWh of energy.
You can check SOH using apps like LeafSpy Pro, which connects via OBD2 and reads the battery management system (BMS). It also shows cell voltages, internal resistance, and temperature — all important indicators of pack health.
While official EPA ranges are useful, they often don’t reflect real-world driving conditions. Factors like temperature, driving style, terrain, and battery degradation all affect range. Here’s what you can typically expect:
| Battery Size | New Battery SOH (100%) | Estimated Real-World Range |
| 24 kWh | 21–22 kWh usable | 100–130 km (62–81 mi) |
| 30 kWh | ~27 kWh usable | 150–170 km (93–106 mi) |
| 40 kWh | ~37 kWh usable | 220–260 km (137–162 mi) |
| 62 kWh | ~56 kWh usable | 330–400 km (205–250 mi) |
⚠️ Usable capacity varies slightly by pack and temperature. Leaf packs don’t allow full discharge to preserve battery life.
Avoid charging to 100% unless necessary for a trip.
Minimize fast charging (DCQC) when not needed.
Store the vehicle in a cool, shaded area during hot weather.
Battery prices can fluctuate based on availability, seller, and battery health (SOH). Below are rough estimates in USD for used batteries:
Most upgrades also require electronic components to ensure safe and functional integration:
| Upgrade Path | Battery Cost | Adapter + CAN-Bridge | Total (Est.) |
| 24 kWh (same-gen swap) | $1,000 – $1,500 | $0 – $300 | ~$1,000 – $1,800 |
| 30 kWh Upgrade | $1,200 – $1,800 | $200 – $700 | ~$1,400 – $2,500 |
| 40 kWh Upgrade | $2,400 – $3,000 | $300 – $1,000 | ~$2,700 – $4,000 |
| 62 kWh Upgrade | $5,500+ | $500 – $1,500 | ~$6,000 – $7,500+ |
💡 These prices are based on used components and do not include labor, tools, or optional upgrades like suspension spacers for the 62 kWh pack.
Whether you’re tackling a Nissan Leaf battery upgrade yourself or researching options before hiring a professional, having access to the right resources is crucial. Below are some of the most trusted platforms, communities, and service providers where you can find technical guides, troubleshooting help, and upgrade kits.

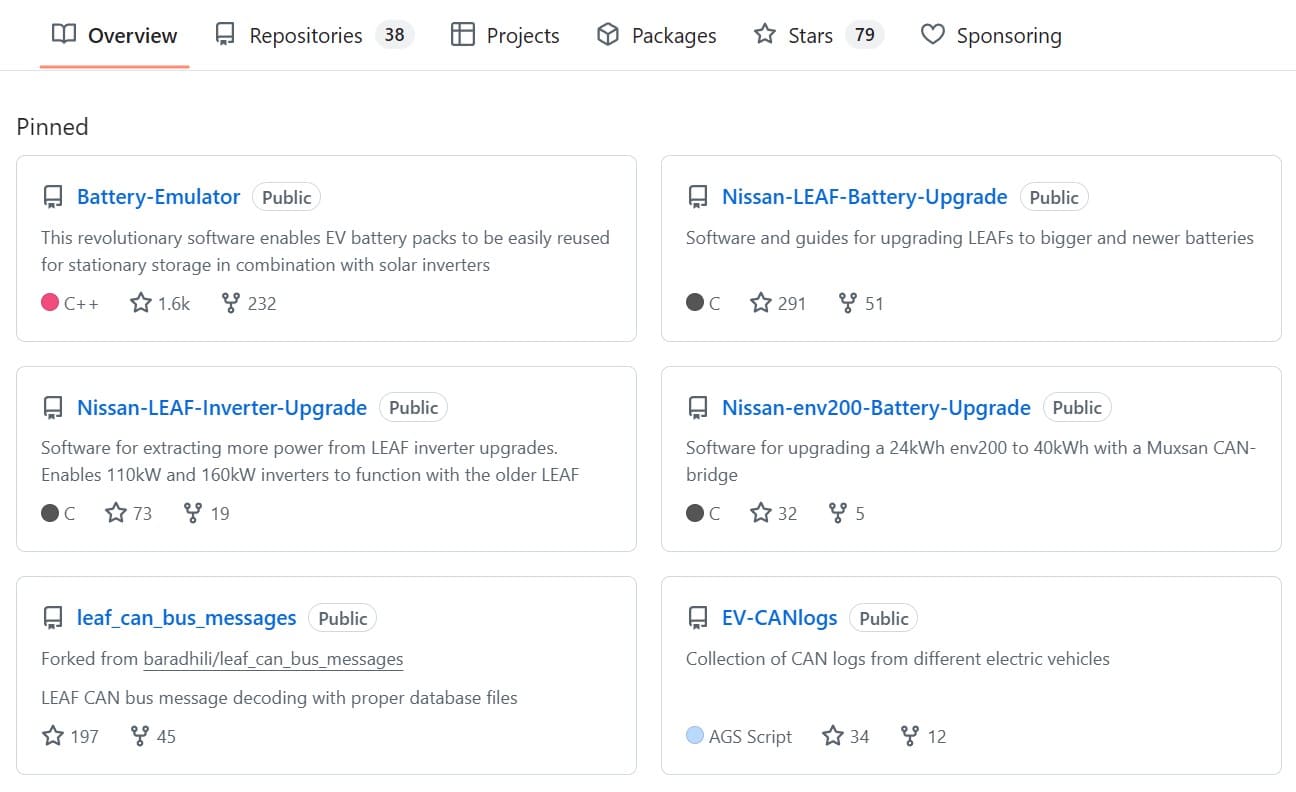

Dala is a well-known EV enthusiast and engineer who has contributed significantly to the DIY Nissan Leaf upgrade community. His work includes:
Links:

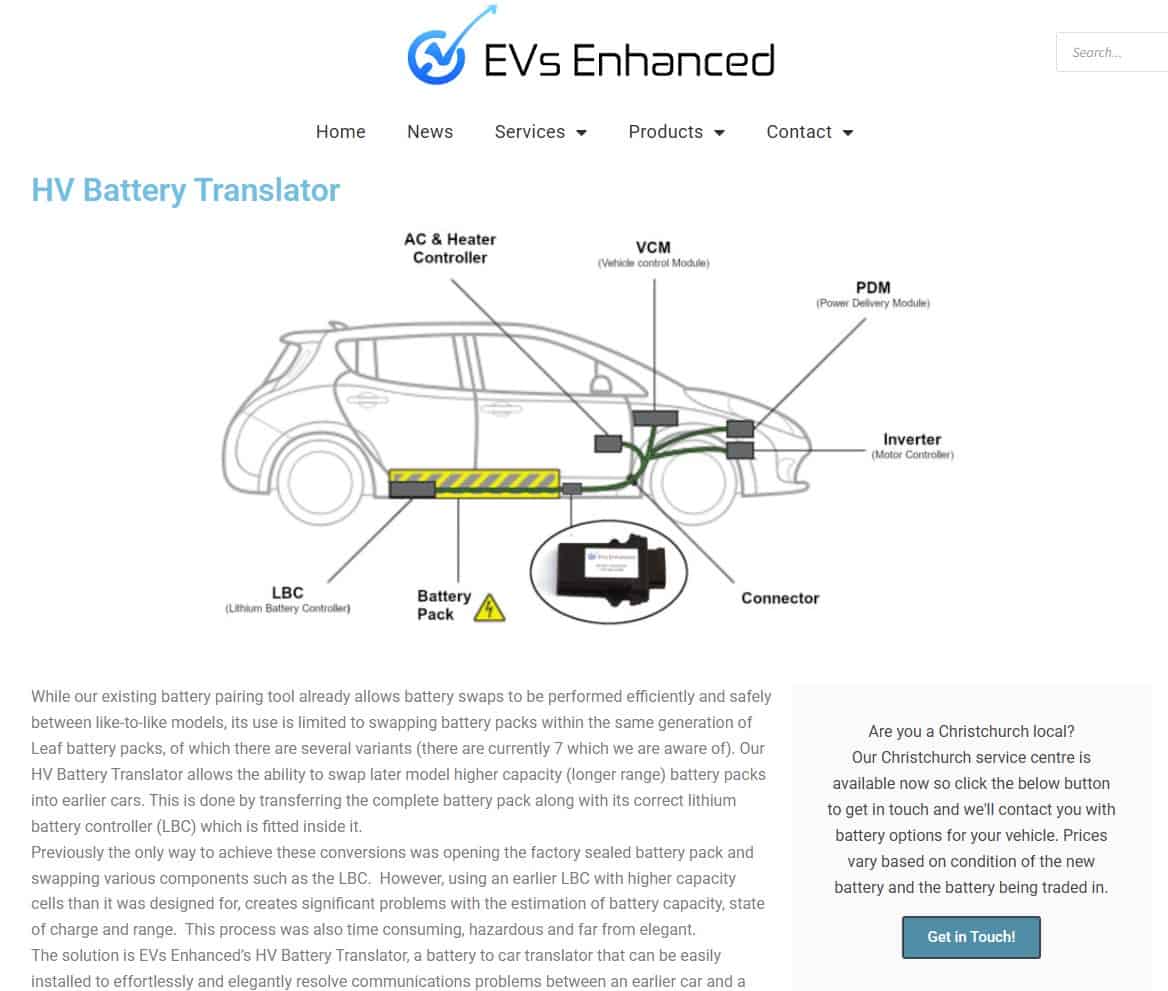

EVs Enhanced offers professional-grade hardware and upgrade solutions, including:
Ideal for those seeking reliable, plug-and-play solutions.
Links:

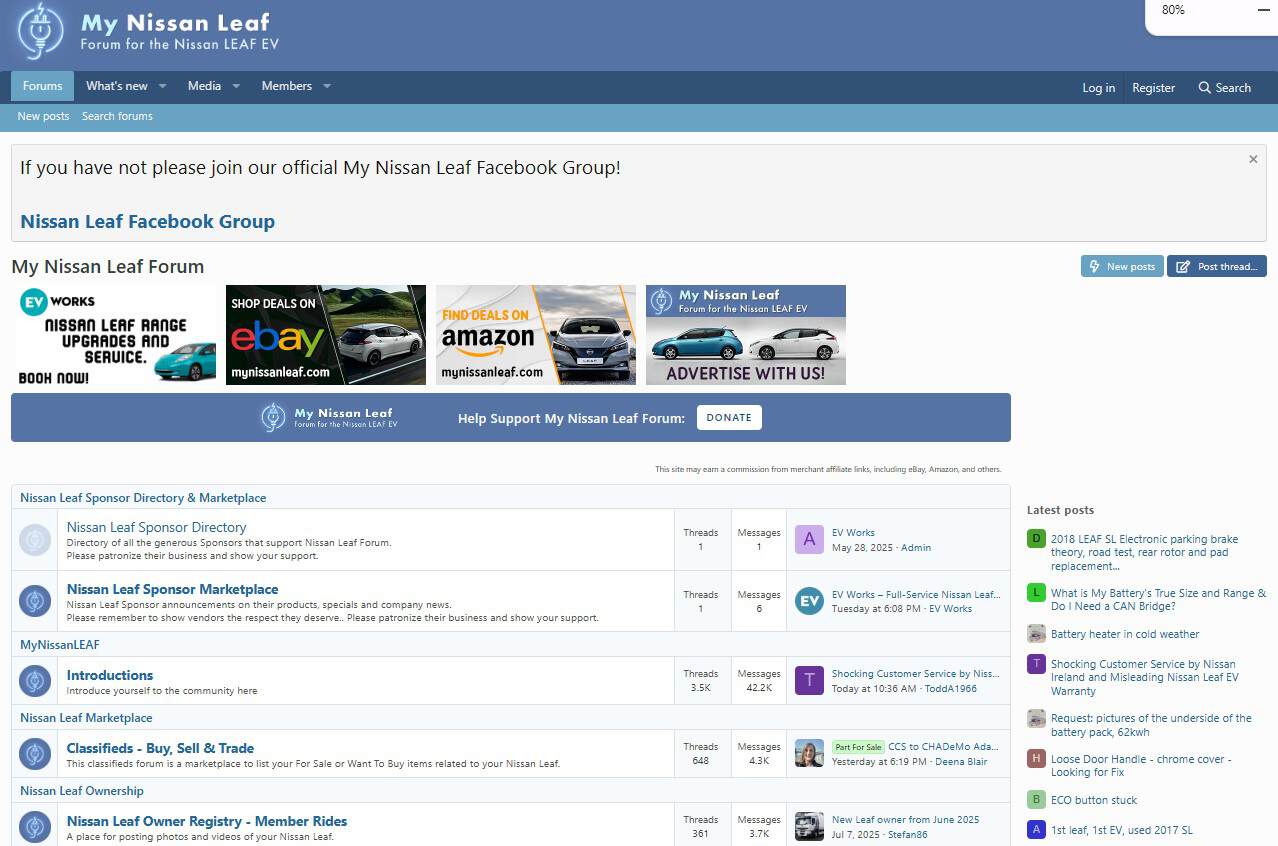

A long-running online community with thousands of Leaf owners and EV enthusiasts discussing:
Great for learning from real-world experience and finding archived technical advice.
Link:
Facebook groups are extremely active and helpful for getting quick feedback, second opinions, and visual step-by-step guides from the community. Some popular groups include:
In addition to Dala, other YouTube creators regularly document Leaf battery upgrades and provide tutorials for:
Search terms like “Nissan Leaf 40kWh upgrade” or “Leaf CAN-bridge install” will bring up a wide variety of helpful content.

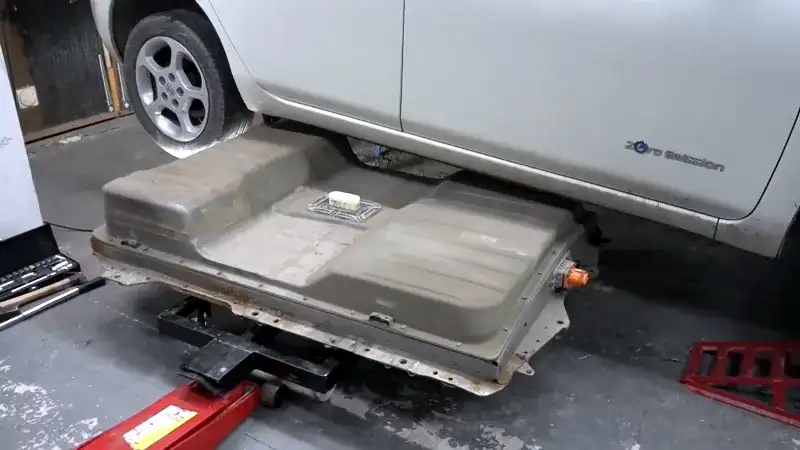

Upgrading your Nissan Leaf battery is one of the best ways to extend the life, usability, and resale value of your EV. But like any major repair or investment, it’s important to go in with realistic expectations and a long-term perspective.
Even if you install a higher-capacity or newer-generation battery, all lithium batteries degrade over time. Heat, charge cycles, driving style, and storage conditions all impact longevity.
Upgrading your Leaf is almost always worth it — especially when done carefully and affordably. However:
Budget smart, and you’ll enjoy a reliable, high-range EV for years without breaking the bank.

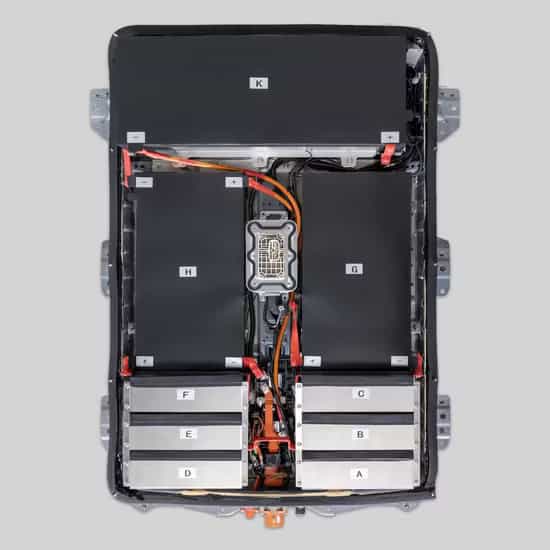

The original ZE0 models (2011–2012) present additional quirks:
Some translator vendors (like EVs Enhanced or Dala’s open-source community) offer improved solutions that help mitigate this.

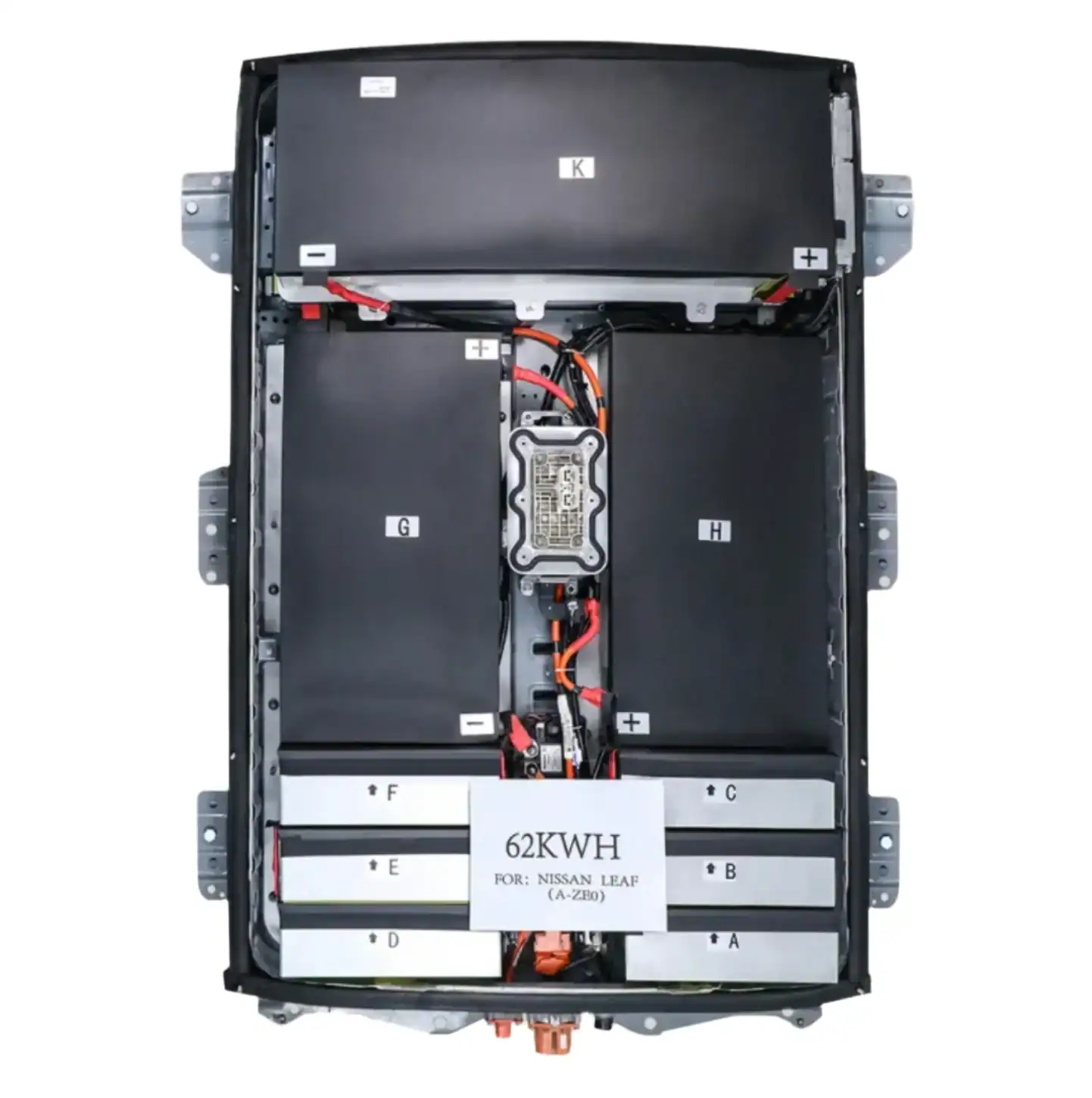

The 62 kWh battery from the 2019+ Leaf e+ offers incredible range, but requires physical and legal considerations:
If you’re aiming for the longest possible range and are comfortable with the modifications, it’s a solid upgrade — just be sure to understand the added complexity.
If your Leaf still suits your lifestyle and needs, a battery upgrade can be transformative. You’ll gain:
Just be sure to choose the right battery size for your goals, research compatibility, and budget realistically. Whether you’re taking the DIY route or going through a trusted shop, planning carefully will help you make the most of your Leaf for many more years to come.
